Install Amplifier ST 5K

ST 5K Amplifier

650 watts rms/channel @ 4 ohms

Install Amplifier ST 5K
Install Amplifier ST 8K

ST 8K Amplifier

1600watts rms/channel @ 4 ohms

Install Amplifier ST 8K
Install Amplifier ST 12K

ST 12K Amplifier

2000watts rms/channel @ 4 ohms

Install Amplifier ST 12K
Install Amplifier ST 15K

ST 15K Amplifier

2550 watts rms/channel @ 4 ohms

Install Amplifier ST 15K

Install Amplifier

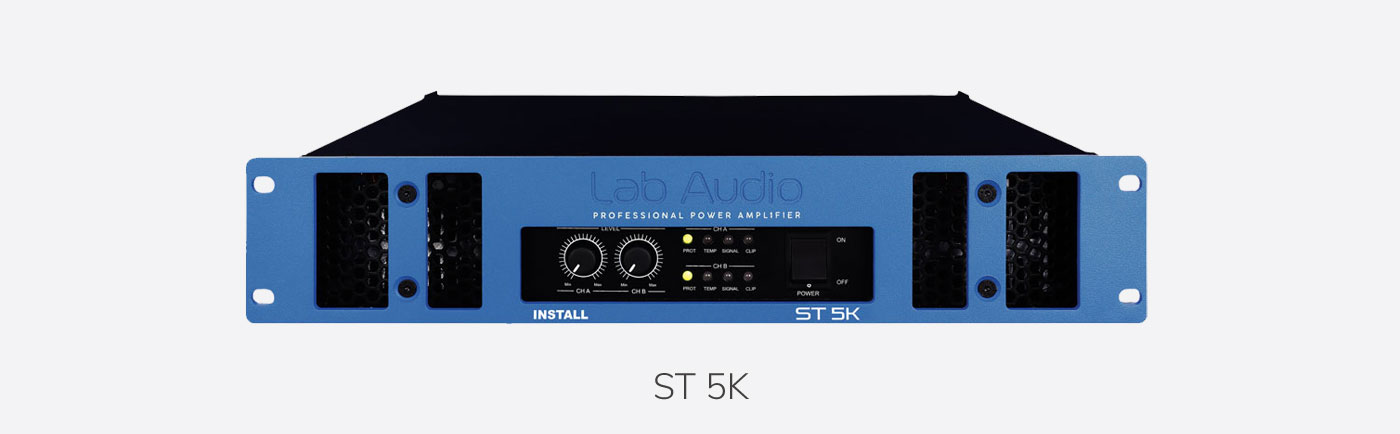

ST 5K Amplifier

The ST 5k,a dedicated install amplifier powered with 650 watts rms/channel @ 4 ohms (415 watts rms/channel @ 8 ohms and 1300 Watts Bridged @ 8 ohms), featured with class AB amplifier and very low THD of <0.05% built for higher sonic performance in its class. Powered with a built in intelligent limiter to avoid over driving of speakers with signal to noise >115dB, and has an input impedance of 10k ohm unbalanced (20k ohm balanced). It features a Toroidal Transformer, XLR Inputs, Ground Lift Switch, Fan Cooled Design, Power, Clip, Signal and Protect LEDs, 2U Spacing and a frequency response of 20 Hz to 20 kHz within 1dB. It also features an input sensitivity of 1.00V for rated power @ 8 ohms.

ST 5K Amplifier

ST 8K Amplifier

ST 8K Amplifier

The ST 8k, a dedicated install amplifier powered with 1600 watts rms/channel @ 4 ohms (925 watts rms/channel @ 8 ohms and 3200 Watts Bridged @ 8 ohms). It provides versatility and value across a wide range of applications for full-range cabinets and Mids-Top speakers. A refined Class H output stage with very low THD of <0.05% is optimized for effortless reproduction of total bandwidth with signal to noise >115dB, and has an input impedance of 10k ohm unbalanced (20k ohm balanced). It features a Toroidal Transformer, XLR Inputs, Ground Lift Switch, Fan Cooled Design, Power, Clip, Signal and Protect LEDs, 3U Spacing and a frequency response of 20 Hz to 20 kHz within 1dB. It also features an input sensitivity of 1.50V for rated power @ 8 ohms.


ST 12K Amplifier

The ST 12k, a dedicated install amplifier powered with 2000 watts rms/channel @ 4 ohms (1200 watts rms/channel @ 8 ohms and 4000 Watts Bridged @ 8 ohms). It provides versatility and value across a wide range of applications for full-range cabinets and low powered subwoofers. A refined Class H output stage with very low THD of <0.05% is optimized for effortless reproduction of total bandwidth with signal to noise >115dB, and has an input impedance of 10k ohm unbalanced (20k ohm balanced). It features a Toroidal Transformer, XLR Inputs, Ground Lift Switch, Fan Cooled Design, Power, Clip, Signal and Protect LEDs, 3U Spacing and a frequency response of 20 Hz to 20 kHz within 1dB. It also features an input sensitivity of 1.69V for rated power @ 8 ohms.

ST 12K Amplifier

ST 15K Amplifier

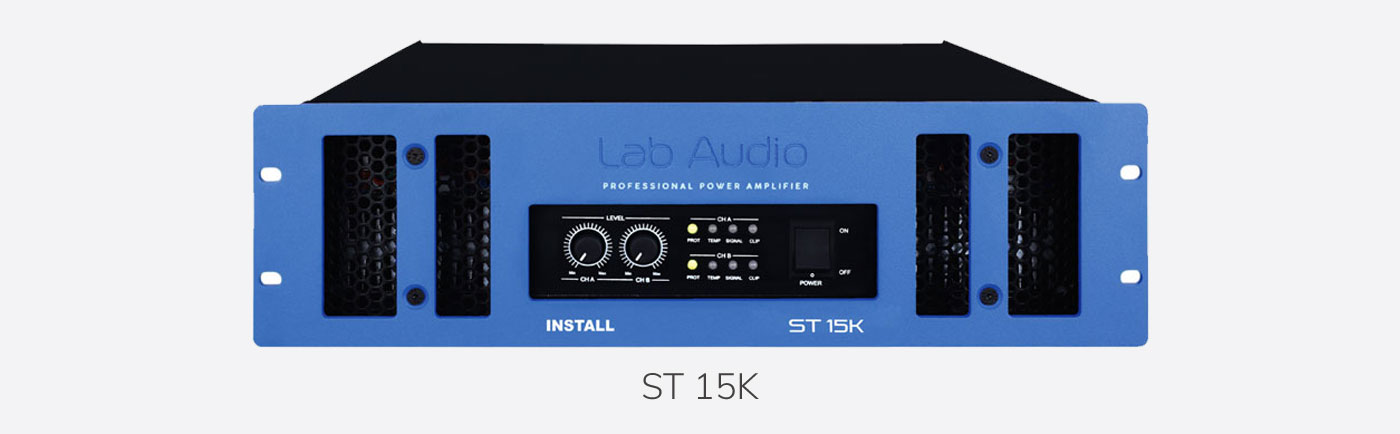

ST 15K Amplifier

The ST 15k a dedicated install amplifier powered with 2550 watts rms/channel @ 4 ohms (1515 watts rms/channel @ 8 ohms and 5100 Watts Bridged @ 8 ohms). This is ideal for subwoofers requiring relatively high continuous power and ample headroom. It is the result of smart design, attention to sound quality and extremely high efficiency, with signal to noise >115dB, and has an input impedance of 10k ohm unbalanced (20k ohm balanced). It features a Toroidal Transformer, XLR Inputs, Ground Lift Switch, Fan Cooled Design, Power, Clip, Signal and Protect LEDs, 3U Spacing and a frequency response of 20 Hz to 20 kHz within 1dB. It also features an input sensitivity of 2.00V for rated power @ 8 ohms.

Download Brochure
