AUX Series
The AUX SERIES offers 5 power variants which means one can select a model that will ideally match their Power Requirements. The amplifiers are designed perfectly for wide range of sound reinforcement in Touring, Live Performance and Sound Installation applications, where sonic quality is the Highest Priority. Detailed sound quality is maintained throughout hours of continuous use, even in the toughest ambient conditions, fulfilling every end user requirement.
Features :
- All-steal 2U/3U curable chassis construction.
- Unobtrusive recessed carrying handles.
- Efficient Toroidal transformer core for high power induction response.
- High-quality grade components ensure optimal result.
- Front panel features individual gain control for channel, Signal, Clip and Fault/ok LED indicators assists you to monitor amplifier performance.
- Cooling rear to front forced air flow with twin tunnel variable high speed fans.
- Intelligent clip limiter to provide high dynamics at negligible distortion levels.
- Dual, Bridge or Parallel operation.
- DC current, Thermal over load and continuous short circuit protection on each channel.
Technical Specifications

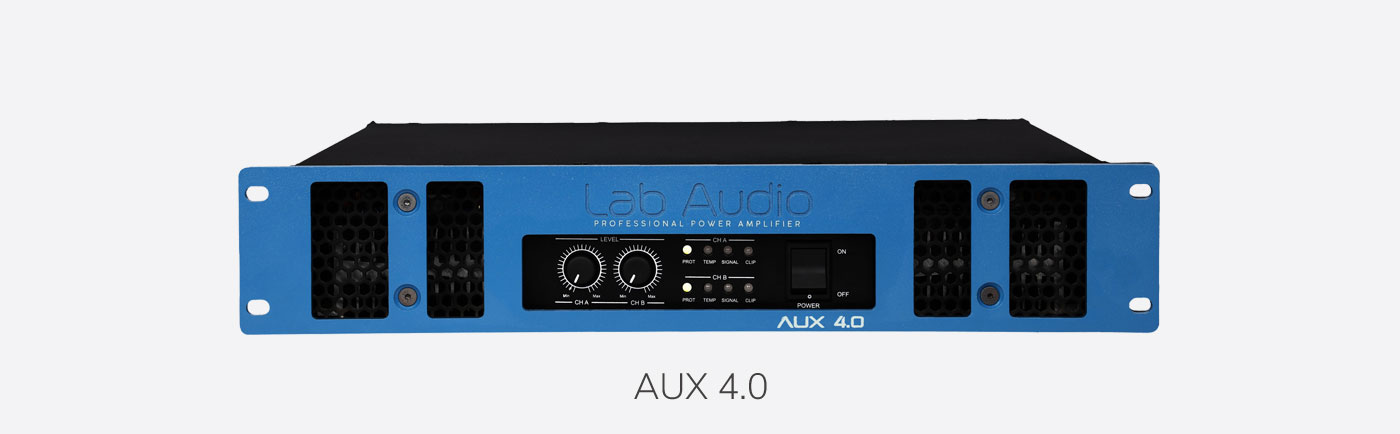

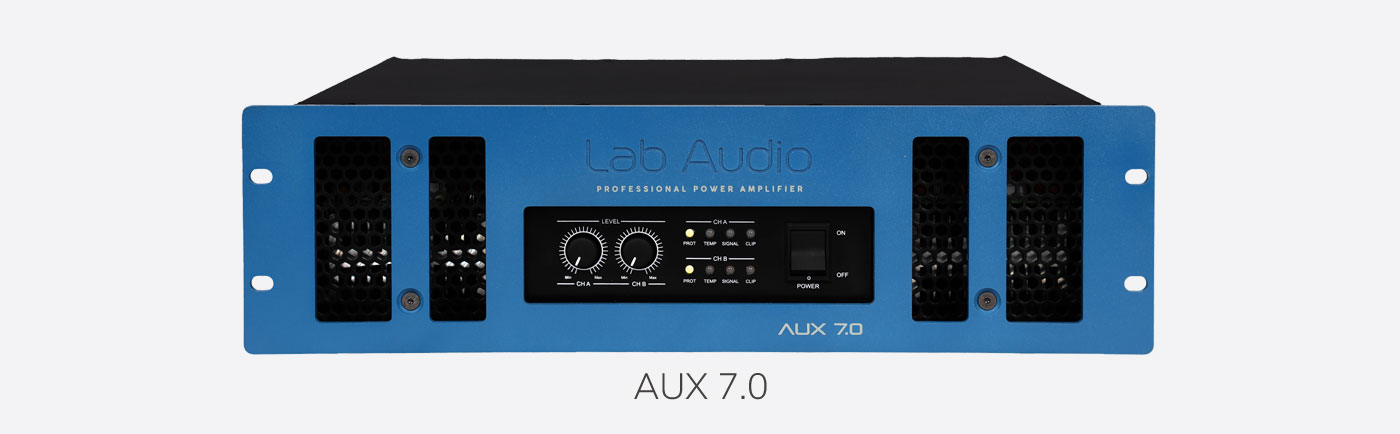

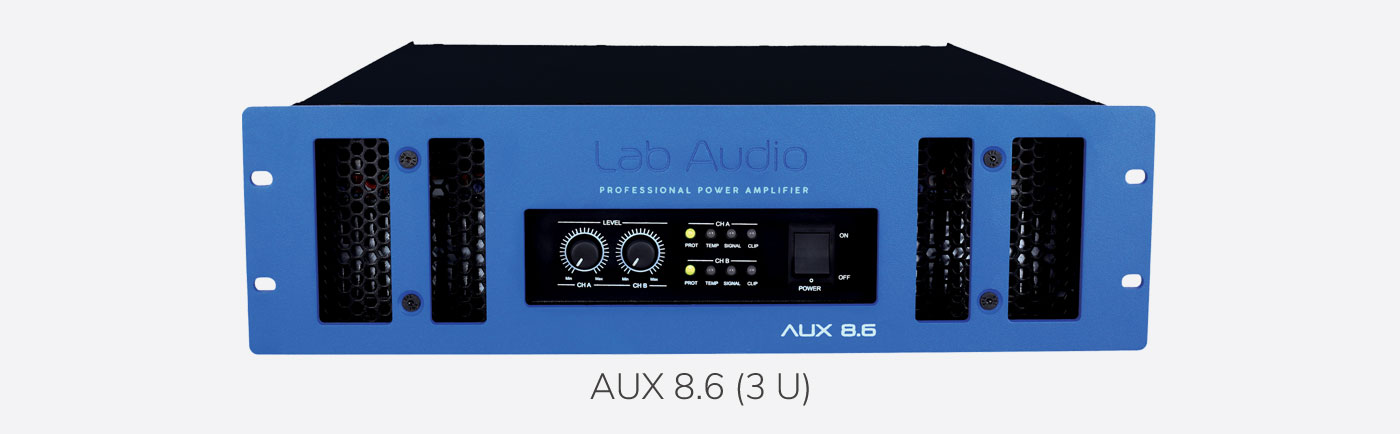

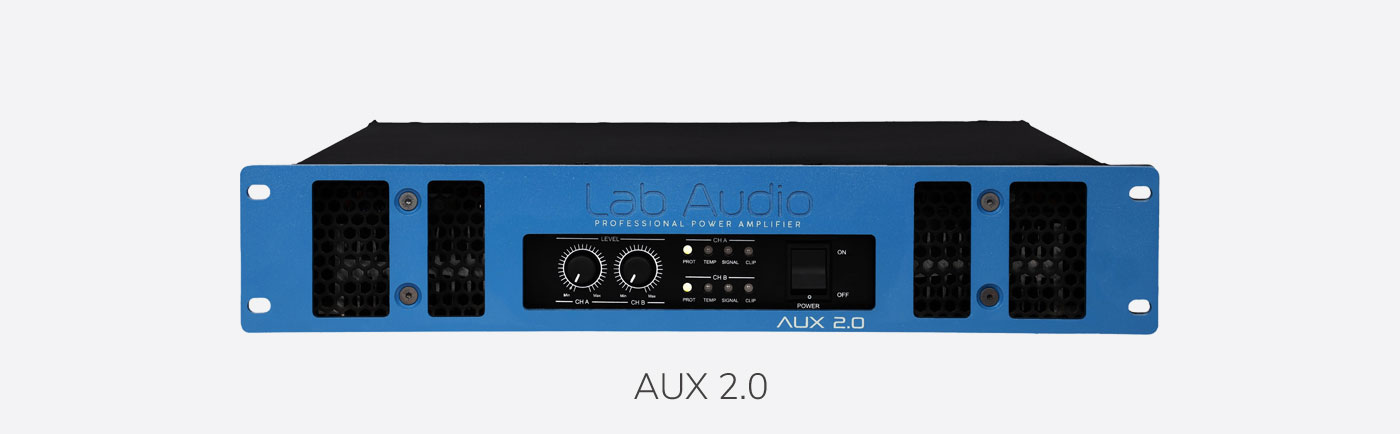

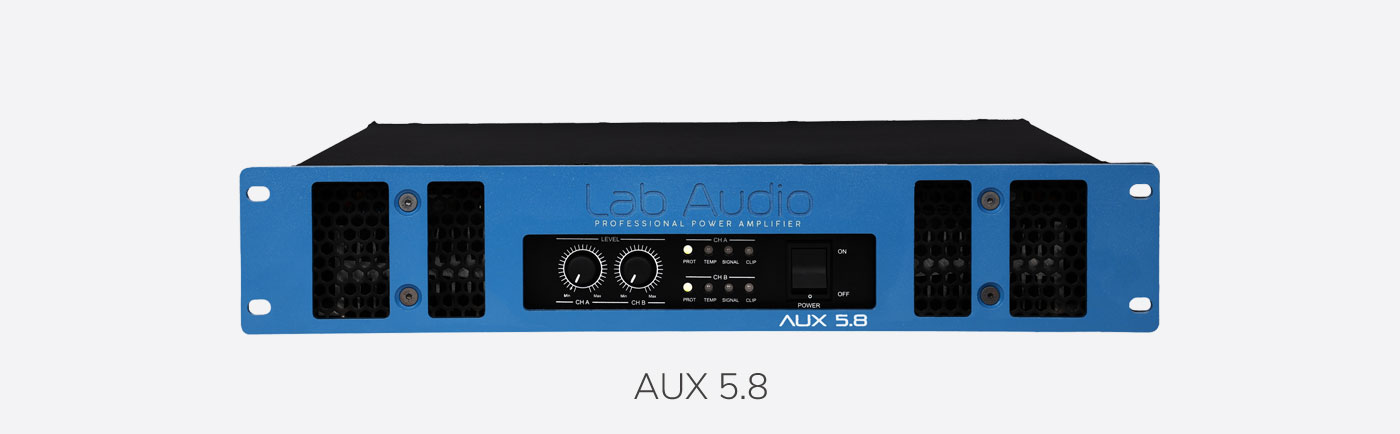

| Model | AUX-2.0 | AUX-4.0 | AUX-5.8 | AUX-7.0 | AUX-8.6 |
|---|---|---|---|---|---|
| MAX Output Power RMS 1KHz
2 Ohms 4 Ohms 8 Ohms Bridge @ 4 Ohms Bridge @ 8 Ohms |
2 X 900W 2 X 650W 2 X 390W 1800W 1300W |
2 X 1800W 2 X 1300W 2 X 760W 3600W 2600W |
2 X 2500W 2 X 1800W 2 X 1050W 5000W 3700W |
2 X 3000W 2 X 2200W 2 X 1300W 6000W 4400W |
2 X 3500W 2 X 2600W 2 X 1570W 7000W 5200W |
| Frequency Response Power Bandwidth +/-0.50dB | 20Hz-20kHz | ||||
| Total Harmonic Distortion 20Hz - 20kHz | <0.05% | ||||
| Cross Talk 20Hz - 20kHz | =75dB | ||||
| Input Sensitivity @ 8 Ω | 1.1V | 1.2V | 1.4V | 1.6V | |
| Damping Factor 20Hz - 20kHz | >600 | ||||
| Slew Rate | >45V/µs | ||||
| Signal-to-Noise-Ratio A Weighted | >98dB | >100dB | >102dB | >104dB | |
| Rack Mount Space | 2U | 3U | |||
| Dimensions / W x H x D (mm) / W x H x D (inches) |
480 x 89 x 406 19 x 3.5 x 16 | 480 x 89 x 460 19 x 3.5 x 18 | 480 x 133 x 510 19 x 5.5 x 20 | ||
| Weight | 20Kg | 21Kg | 21Kg | 37Kg | 39Kg |
| Net / Shipping | 22Kg | 23Kg | 23Kg | 39Kg | 41Kg |
