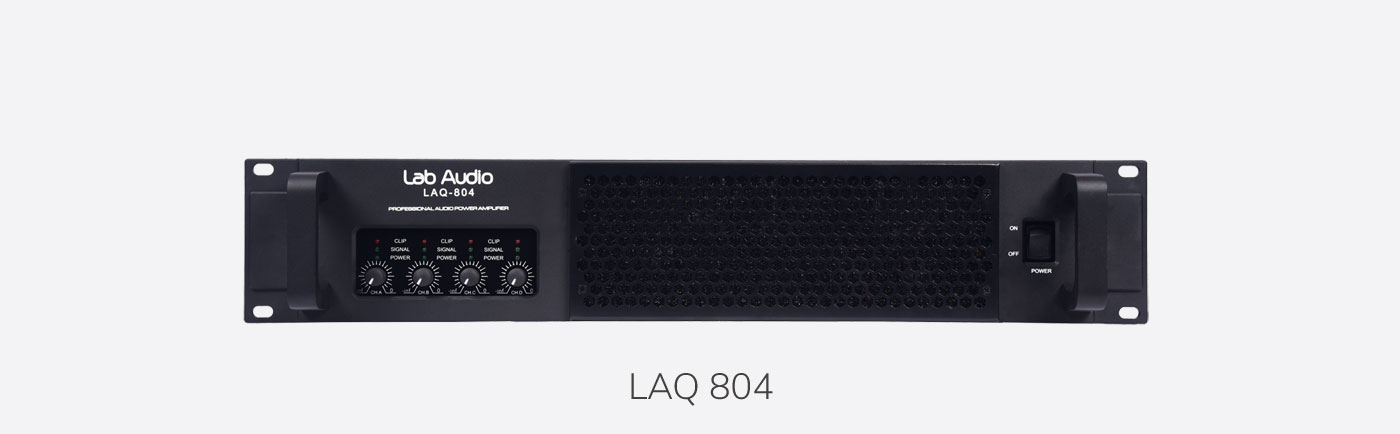

LAQ Series
The LAQ series of amplifiers utilizes Class-D topology that produce smooth and responsive across the power bandwidth. These amplifiers incorporate the latest Lab Audio regulated SMPS design, resulting in lightweight units that are ideal for use in various professional uses.
The LAQ series includes a soft limiter, short circuit, DC offset, and thermal protection. These features makes an excellent choice for sound reinforcement in touring, live performances, and sound installations. In summary, the LAQ series of amplifiers is a reliable, and ease of use, making them a valuable investment for any audio professional.
Features :
- All-steal 2U durable chassis construction.
- European and Japanese components ensure optimal result.
- Short circuit, DC output and peak voltage limit.
- Power regulated switching power supply.
Technical Specifications
| Model - Topology D | LAQ-1004 | LAQ-1504 |
|---|---|---|
| No. Of Channels | 4 | 4 |
| MAX Output Power RMS 1KHz 2Ω 4Ω 8?Ω 16Ω Bridge 4Ω Bridge 8Ω |
1300 W 1000 W 650 W 400 W 2600 W 2000 W |
2000 W 1500 W 875 W 500 W 4000 W 3000 W |
| Frequency Response Power Bandwidth +/-0.50dB |
15Hz-28kHz | |
| Total Harmonic Distortion 20Hz - 20kHz |
0.08% | |
| Cross Talk 20Hz - 20kHz |
≥82dB | |
| Input Sensitivity @ 8 Ω | 0.775V, 1.0V, 32dB | |
| Signal-to-Noise-Ratio A Weighted | >105 | |
| Protection Circuits | Short Circuit DC Offset & Overheat | |
| Rack Mount Space | 2U | |
| Dimensions / W x H x D (mm) / W x H x D (inches) |
483x 88 x 467 19 x 3.5 x 18.4 |
|
| Weight | 12Kg | |
| Net / Shipping | 14Kg | |
