CQ Series

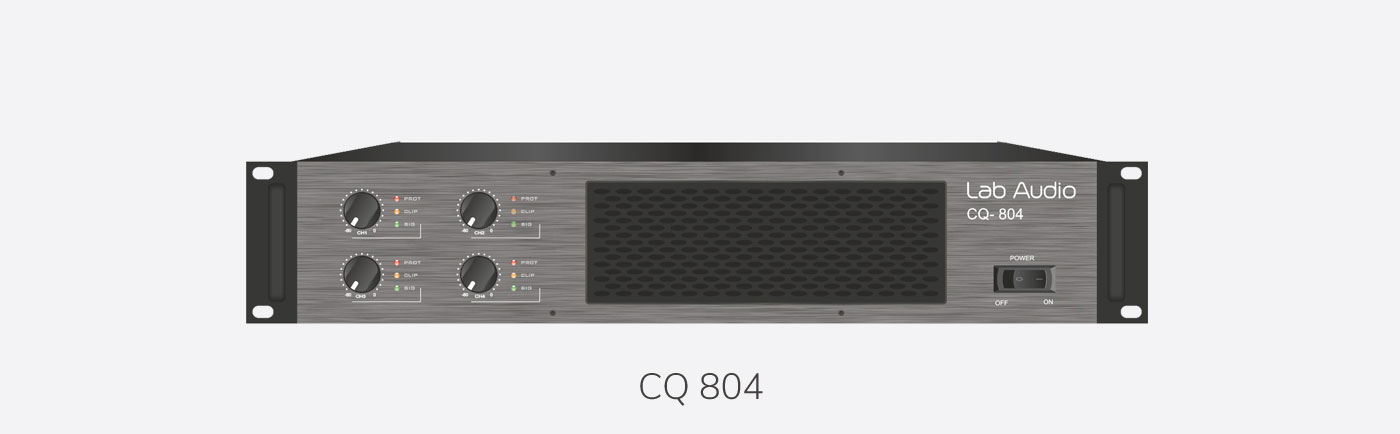

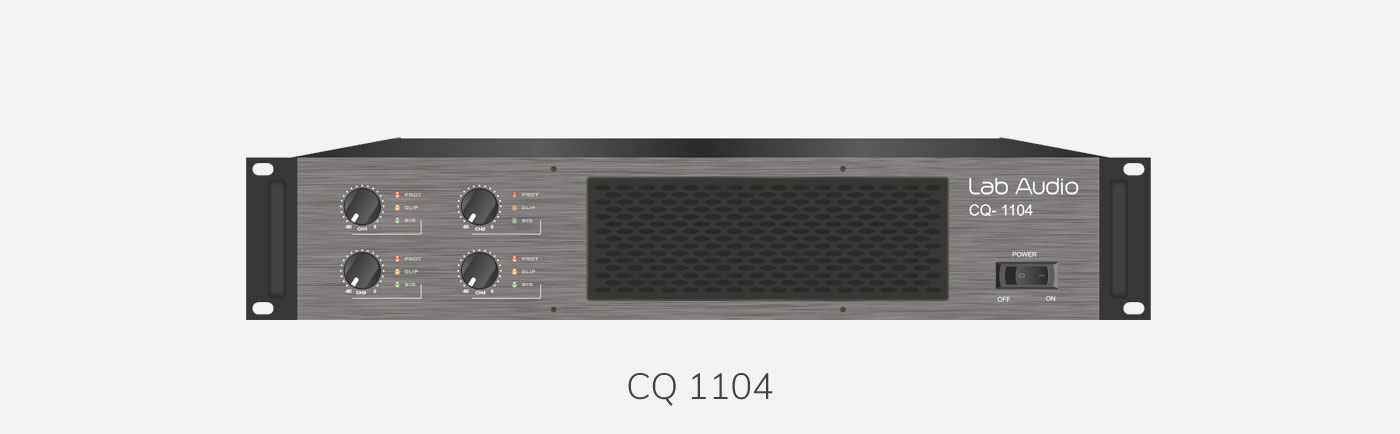

The CQ-series includes robust four-channel amplifiers, CQ-804 and CQ-1104, deliver exceptional sound reinforcement in live performances, touring, and sound installations. Equipped with protective mechanisms against thermal issues , short circuits, and DC offset.
The CQ-series ensures automatic reconnecting to the speaker load in case of any error. This cost-effective and dependable series caters to both professionals and audio enthusiasts, making it an ideal solution for any audio application.
Features :
- All-steal 2U/3U durable chassis construction.
- European and Japanese components ensure optimal result.
- Soft start upon start-up, overload , overheating, short circuit, DC output, peak voltage limit and intelligent clip protection.
- Easy detachable amp plate boards help making service jobs easier.
- High-speed fans start-up for dusting functions and also allows in reducing temperature.
- LED indicator for monitoring, status and operating modes.
Technical Specifications
Model - Topology H | CQ-804 | CQ-1104 |
---|---|---|
No. Of Channels | 4 | 4 |
MAX Output Power RMS 1KHz 2Ω 4Ω 8Ω Bridge 4Ω Bridge 8Ω |
1000 W 800 W 425 W 2000 W 1600 W |
1350 W 1100 W 620 W 2700 W 2200 W |
Frequency Response Power Bandwidth +/-0.50dB |
20Hz-22kHz | |
Total Harmonic Distortion 20Hz - 20kHz |
0.05% | |
Cross Talk 20Hz - 20kHz |
≥72dB | |
Input Sensitivity @ 8 Ω |
1.4V | |
Signal-to-Noise-Ratio A Weighted |
>101 | |
Protection Circuits | Short Circuit DC Offset & Overheat | |
Rack Mount Space | 2U | |
Dimensions / W x H x D (mm) / W x H x D (inches) |
483x 88 x 406 19 x 3.5 x 16 |
|
Weight | 24Kg | |
Net / Shipping | 26Kg |
